When you compress or extend a spring, it exerts a force opposite the force you exert in an effort to return to its equilibrium position. The amount of force is characteristic of the spring and is represented by the spring constant, *k*. According to **Hooke's law**, the relationship between extension *x* and force *F* is:

The minus sign signifies that the force exerted by the spring is in the opposite direction to the extension.

The relationship between force and extension is a linear one, which means that if you plot a force vs. extension graph, you'll get a straight line. It will pass through the origin (*x* = 0; *F* = 0), and its slope will be equal to the spring constant, *k*.

## Convert to Force

The easiest way to get values for a Hooke's law graph is to suspend the spring from a hook and attach a series of weights whose values are known. However, the weights are typically measured in grams or kilograms, which are units of mass. It's easy to convert them to units of force, though.

All you have to do is multiply the mass by the acceleration due to gravity, which in the MKS metric system is 9.8 m/s^{2} and in the CGS system is 980 cm/s^{2}. If your weights are calibrated in pounds, multiply by 32 ft/s^{2} to convert them to pounds of force.

You can still get a graph with a straight line and extrapolate a value of *k* from the slope even if you don't make these conversions, but the value for *k* will be in the wrong units and will be a different value than the one you obtain if you do the conversion.

## Plot Two Points or More

To plot a straight line, you only need two points, which means you only need to make **two measurements**. It's a good idea to make more, though – at least three or four. The extra measurements are insurance. If they don't fall on the line created by the original two points, something could be wrong with the spring or with the weights you're using.

To plot the points, suspend the spring vertically from a hook and record its extension, using a ruler. Attach a known weight to the free end and record the new extension. The difference is *x*. After you calculate the force exerted by the weight, you have your first point (*x*_{1}, *F*_{1}). Plot different points by changing the weight and recording the new extension. When you're done plotting points, draw a line through the points that is closest to touching all of them.

## Measure the Slope of the Force Extension Graph

In general, you can find the slope of a line by choosing two points and forming a **ratio** of the rise and the run between these two points. If the first point you choose is (*x*_{1}, *F*_{1}), and the second point is (*x*_{2}, *F*_{2}), the slope of the line is:

Assuming *F*_{2} is larger than *F*_{1}.

This is the value of the spring constant, *k*. Despite the minus sign in the Hooke's law equation, *k* is a positive number, because the slope in the Hooke's law graph is positive.

Note that the spring constant has units of force/distance. In the MKS system, the spring constant units are newtons/meter. In the CGS system, they are dynes/centimeter. In the imperial system, they are pounds of force (lb_{f}) /foot.

Now that you have the spring constant, you can predict exactly how much the spring will distend or compress when you subject it to any force.

References

Tips

- Ensure you use consistent units, so if you are using pounds for your known mass, use feet for your measuring of the spring extension, if you are using kilograms for your known mass, use meters for your measuring of the spring extension.

About the Author

Chris Deziel holds a Bachelor's degree in physics and a Master's degree in Humanities, He has taught science, math and English at the university level, both in his native Canada and in Japan. He began writing online in 2010, offering information in scientific, cultural and practical topics. His writing covers science, math and home improvement and design, as well as religion and the oriental healing arts.

Photo Credits

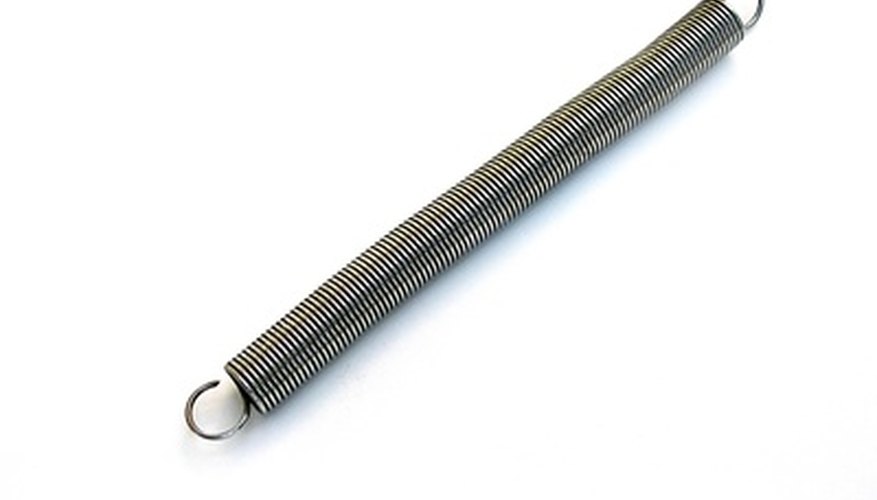

spring image by Edsweb from Fotolia.com
