How to Convert AC Voltage to DC

An AC adapter converts AC to DC for electronic circuit devices.

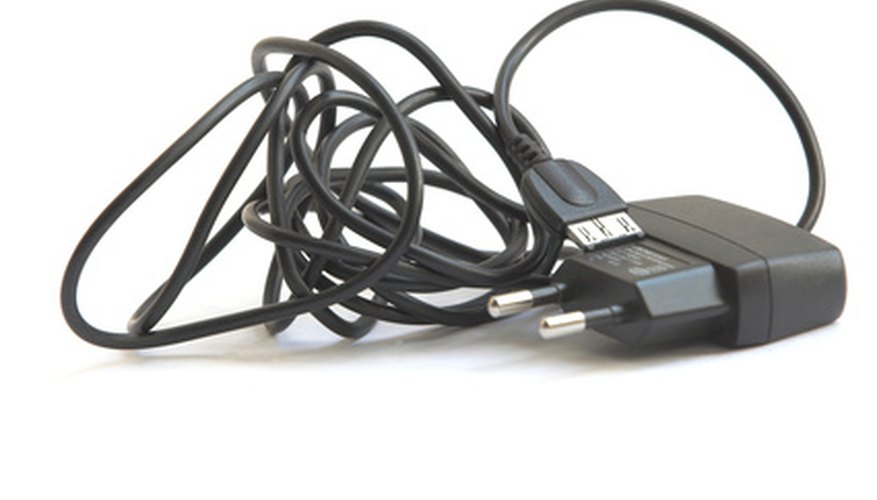

••• ac/dc image by Maxim Kulemza from Fotolia.com

Things You'll Need

  • Transformer
  • Diode bridge rectifier
  • Electrolytic capacitor
  • Voltage regulator
  • Calculator
  • Pencil
  • Paper

A regulated power supply system can be assembled to electrically convert high-voltage alternating current (AC) to a fixed direct current (DC) in a series of steps. This process first involves converting the varying AC voltage to a pulsed, single-direction DC voltage. The pulsed current is then smoothed and regulated to produce a fixed DC output. Mathematically, the conversion of AC voltage to the equivalent DC voltage requires only an understanding of the relationship between the two electrical processes.

Converting AC to DC Voltage Electrically

    A step-down transformer reduces high-voltage AC input for use in a lower voltage power supply.
    ••• danger, high voltage image by Alexander from Fotolia.com

    Begin with a step-up or step-down transformer to increase or decrease the incoming AC voltage as needed. The transformer consists of two parallel coils bridged by the magnetic field created in an iron core. The regulation of the voltage is determined by the number of turns in the coils.

    Diodes convert, or

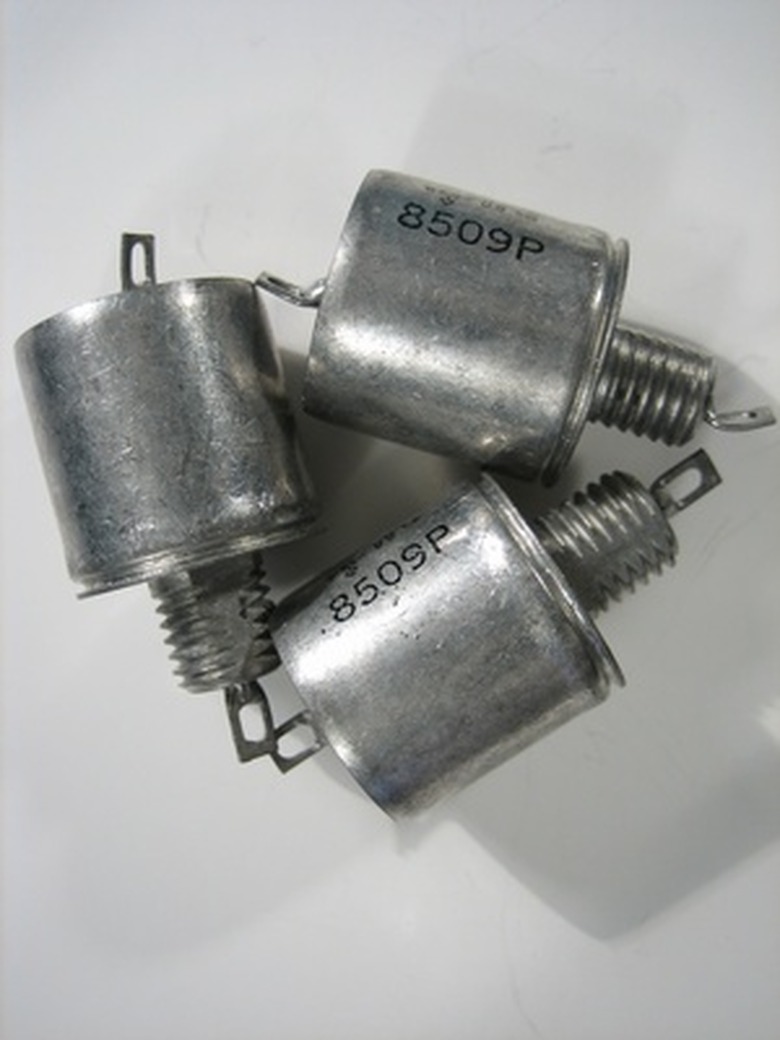

    ••• diodes image by Albert Lozano from Fotolia.com

    Add a rectifier to convert the increased or reduced AC to a DC voltage. A bridge rectifier using four diodes converts the alternating (negative and positive) AC voltage to a single-direction DC voltage as alternate diode pairs conduct.

    Smooth the pulsed DC output with a "reservoir," or smoothing, capacitor so that the DC voltage will vary only slightly. This capacitor, which charges and discharges at the rise and fall of the wave peaks, produces a modulated, "rippled" DC output.

    A simple regulator can be constructed from a resistor and a zener diode.

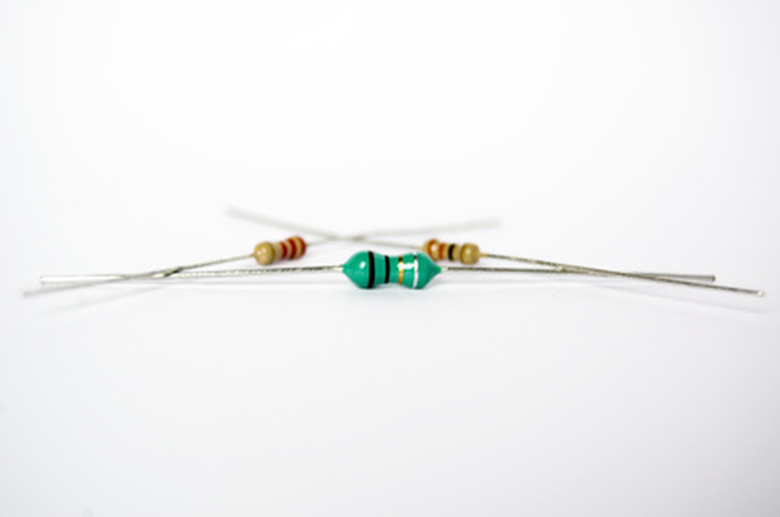

    ••• resistor image by naolin from Fotolia.com

    Eliminate the DC "ripple" by adding a voltage regulator chosen to set the DC output at the desired voltage. The input DC voltage must be a few volts greater than the fixed-output voltage desired to allow for fluctuations caused by the ripple.

Converting AC to DC Voltage Mathematically

    Calculate the "peak" voltage output by multiplying the given "rms" (root mean square) voltage value by 1.4, or the square root of two. For example, an AC voltage of 10 volts (rms) will have a peak voltage of 14 volts.

    Convert this peak AC voltage to the equivalent DC voltage by dividing the peak AC value by 1.4. A peak AC voltage of 14 volts will produce a rectified DC voltage of about 10 volts.

    A voltmeter reports the
    ••• voltage image by Tadzio from Fotolia.com

    Compare the equivalent DC voltage obtained with the original rms value -- the DC voltage is equivalent to the rms voltage, or the "effective" value, of the AC with the peaks smoothed out. In an actual electrical power source, the DC voltage output will vary because of losses and will be less than the AC rms voltage value.

    Tips

    • Voltage is commonly reported as an rms, or "root mean square," value and not the "peak" value. The rms voltage is the "effective" value of the varying AC voltage. The peak voltage is the measure of the voltage range as the current alternates from negative to positive values. The rms voltage is roughly 71 percent of the peak voltage.

      In an actual regulated power source, the equivalent DC voltage depends on the amount of smoothing by the capacitors and voltage loss across the diodes and transformer.

    Warnings

    • Be aware of the inherent dangers involved when working with electrical power sources and follow appropriate safety protocol. Failure to do so can result in injury or death.
