What Materials Are Capacitor Plates Made Out Of?

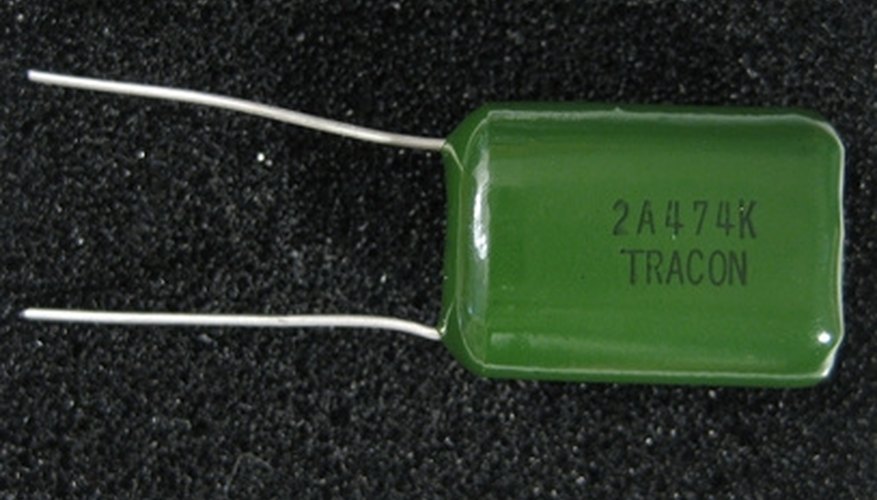

Capacitors come in many forms and can be composed of many different materials.
••• capacitor image by Albert Lozano from Fotolia.com

By definition, capacitor plates are made of conducting materials. This usually means metals, though other materials are also used. In addition to being conducting, capacitor plates need mechanical strength and resistance to deterioration from electrolytic chemicals. On top of that, most capacitors need extremely thin plates to pack the most capacitance in a small package. Manufacturers use ductile metals to make thin plates from foils. The materials must also be inexpensive and have good availability to be suitable for mass production.

Aluminum

Aluminum is a workhorse material for making the majority of capacitors. It’s inexpensive, highly conductive and easily formed into plates or foils.

Tantalum

Capacitors that use tantalum are more temperature and frequency stable than those using aluminum, though tantalum costs more.

Silver

Silver appears in silver-mica capacitors. These also cost more than aluminum plate capacitors, and are used in high-accuracy audio applications.

Other Metals

Other metals are used for capacitor plates in research and specialized applications. Brass is sometimes used in variable air capacitors. Liquid mercury can act as a capacitive plate in a sensor.

Carbon Nanotubes

In 2009, research into very high-capacitance devices led to experiments with carbon nanotubes. Their extremely small size allows for a large, effective plate area and a small gap between plates.
