Parts of the Microscope and Their Uses

••• Zolnierek/iStock/GettyImages

One of the wonders of the scientific world is that so much of what goes on is invisible to the naked eye. Invented in 1590 by a Dutch optician named Zacharias Janssen, the compound (or light) microscope gives students and scientists a close-up view of tiny structures like cells and bacteria. Read on to find out more about microscope parts and how to use them.

The Eyepiece Lens

Microscope eyepiece
••• franz pfluegl/iStock/Getty Images

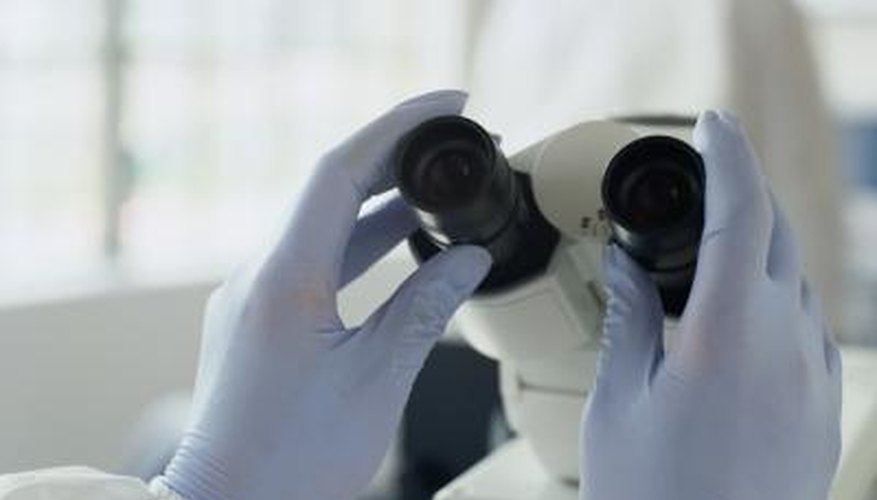

The eyepiece contains the ocular lens, which the user looks through to see the magnified specimen. The ocular lens has a magnification that can range from 5x to 30x, but 10x or 15x is the most common setting.

The Eyepiece Tube

Microscope eyepiece tube
••• wavebreakmedia/iStock/Getty Images

The eyepiece tube connects the eyepiece and ocular lens to the objective lenses located near the microscope stage.

The Microscope Arm

Close up of microscope arm
••• tetmc/iStock/Getty Images

The microscope arm connects the eyepiece tube to the base. This is the part you should hold when transporting a microscope.

The Microscope Base

Laboratory microscope
••• lusia83/iStock/Getty Images

The base provides stability and support for the microscope when it is upright. The base also typically holds the illuminator, or light source.

The Microscope Illuminator

Light shines through microscope
••• Łukasz Kordela/iStock/Getty Images

Microscopes require a light source for viewing. This can come in the form of a built-in, low-voltage illuminator light, or a mirror that reflects an external light source like sunlight.

Stage and Stage Clips

Microscope stage platform
••• Fuse/Fuse/Getty Images

The stage is a platform for the slides, which hold the specimen. The stage typically has a stage clip on either side to hold the slide firmly in place. Some microscopes have a mechanical stage, with adjustment knobs that allow for more precise positioning of slides.

The Microscope Nosepiece

Microscope nosepiece which holds the objective lenses
••• Ryan McVay/Photodisc/Getty Images

The nosepiece contains the objective lenses. Microscope users can rotate this part to switch between the objective lenses and adjust the magnification power.

The Objective Lenses

Close up of microscope eyepiece
••• luchschen/iStock/Getty Images

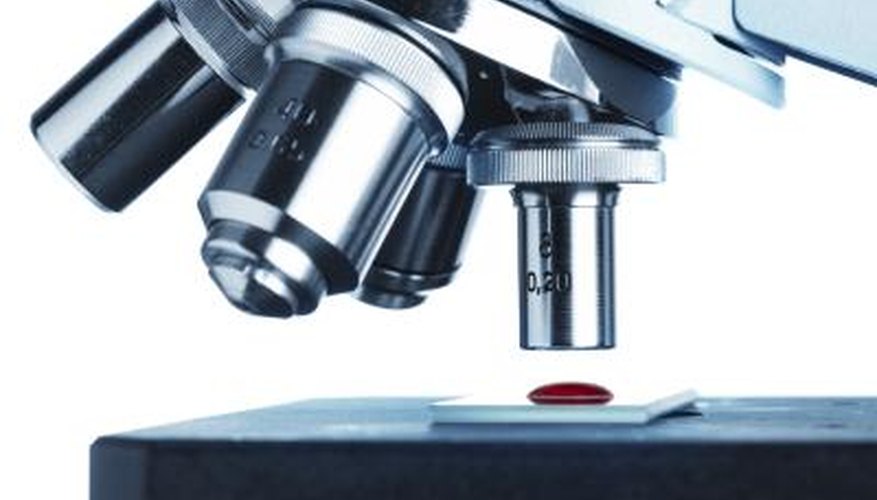

The objective lenses combine with the eyepiece lens to increase magnification levels. Microscopes generally feature three or four objective lenses, with magnification levels ranging 4x to 100x.

The Rack Stop

Rack stop
••• nevodka/iStock/Getty Images

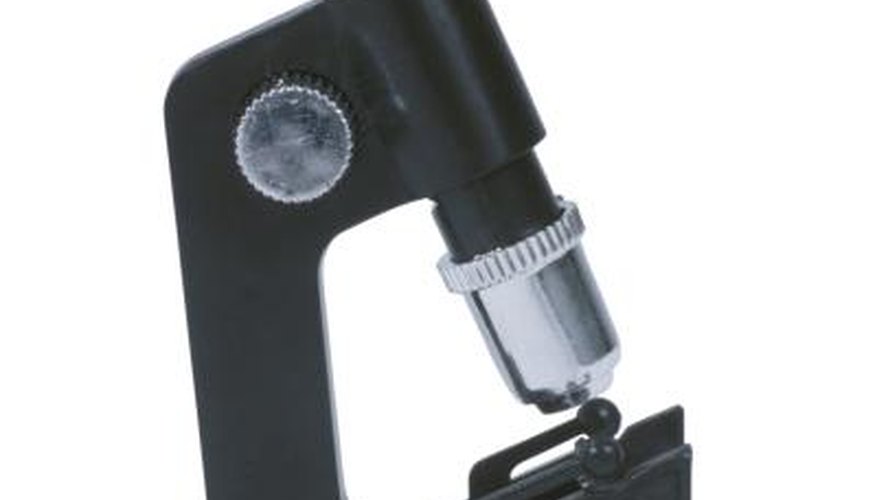

The rack stop prevents users from moving the objective lenses too close to the slide, which could damage or destroy the slide and specimen.

Condenser Lens and Diaphragm

Macro shot of microscope lenses and stage
••• Brian Maudsley/iStock/Getty Images

The condenser lens works with the diaphragm to focus the intensity of the light source onto the slide containing the specimen. These parts are located under the microscope stage.
